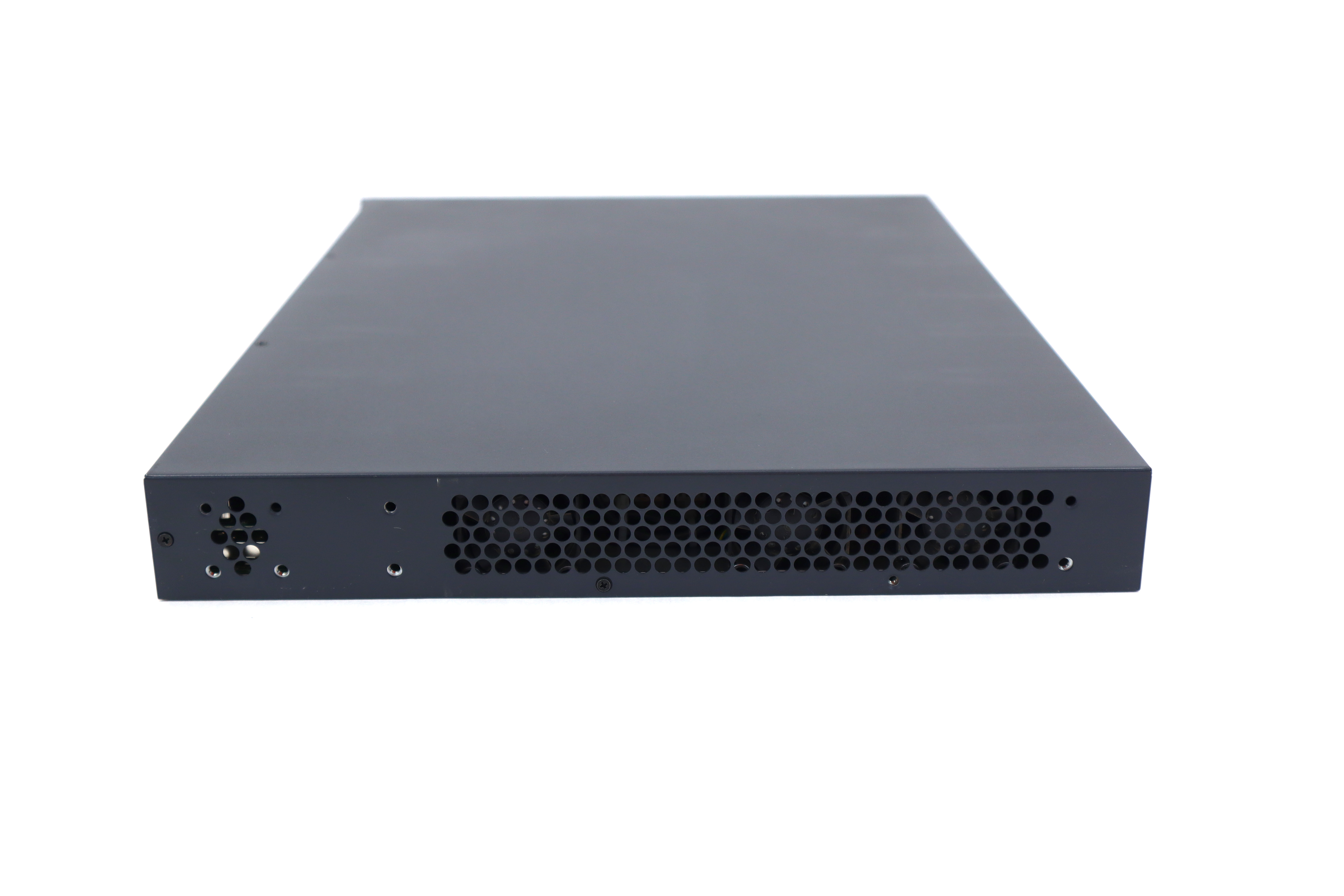

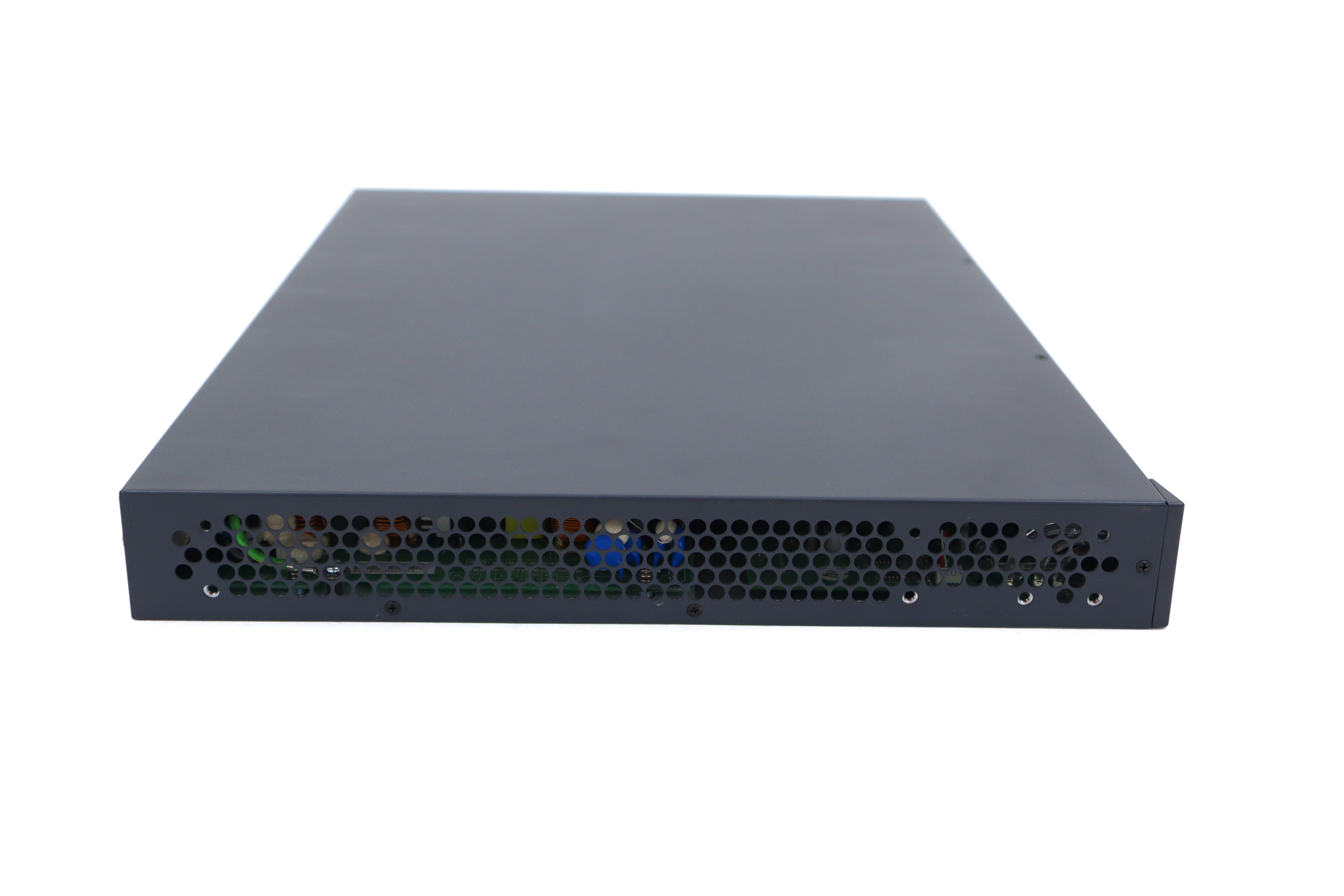

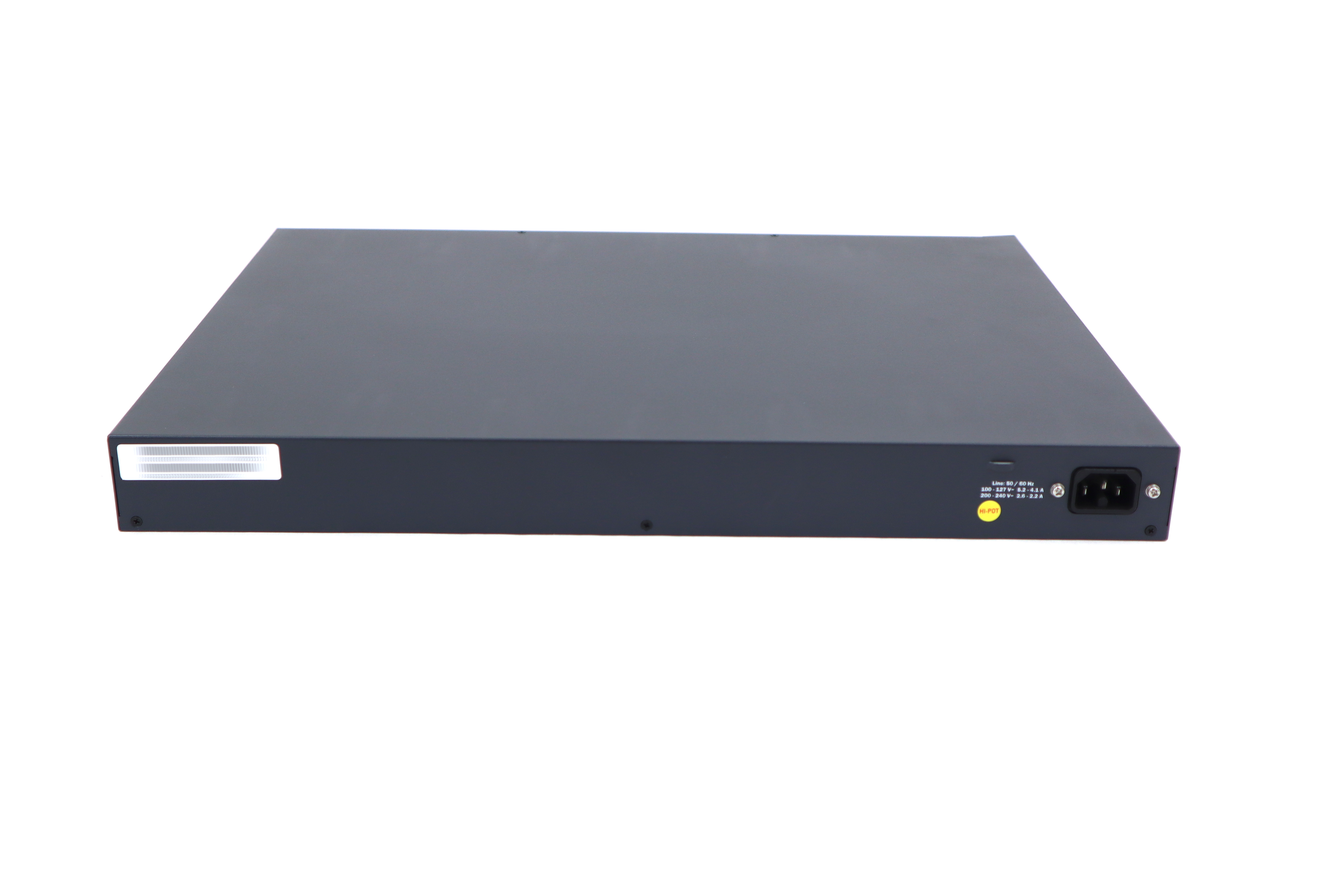

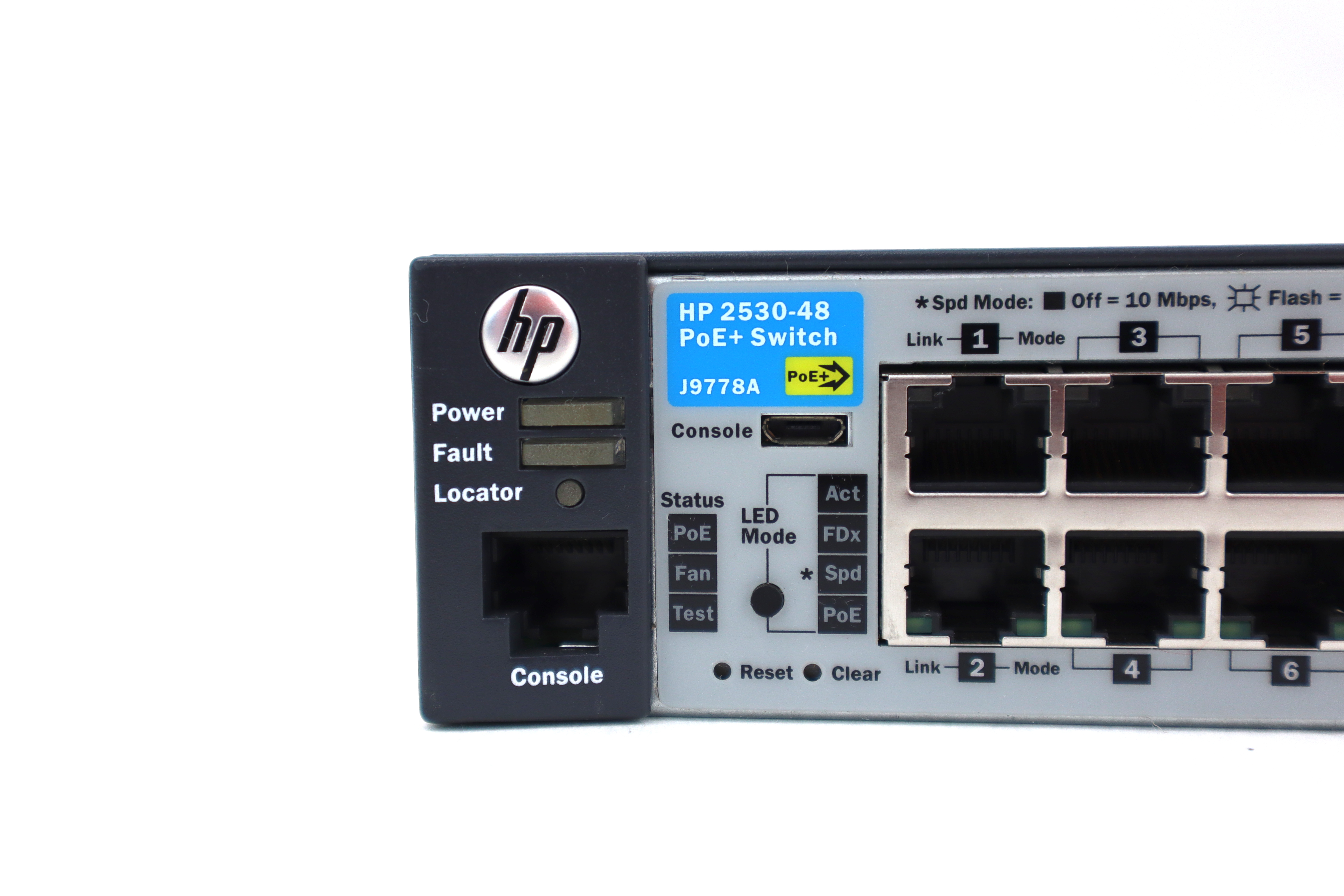

HP 2530-48-PoE+ Switch managed 48x 10/100 + 2x Gigabit J9778A

HP 2530-48-PoE+ Switch managed 48x 10/100 + 2x Gigabit J9778A

Condition Refurbished

Compeve SKU 101000160913

Specifications

I/O ports and slots 48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3at PoE+) Media Type: Auto-MDIX Duplex: half or full
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full
only
2 fixed Gigabit Ethernet SFP ports

Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port

Dimensions 17.40(w) x 12.70(d) x 1.75(h) in (44.2 x 32.26 x 4.45 cm) (1U height)
Weight 10.1 lb (4.58 kg)

Processor ARM9E @ 800 MHz, 128 MB flash; Packet buffer size: 3 MB dynamically
allocated, 256 MB DDR3 DIMM

IPv6 Ready Certified
100 Mb Latency < 6.6 µs (LIFO 64-byte packets)
1000 Mb Latency < 2.2 µs (LIFO 64-byte packets)
Throughput up to 13 Mpps (64-byte packets)
Switching capacity 17.6 Gbps
MAC address table size 16000 entries

Operating temperature
32°F to 113°F (0°C to 45°C)

Operating relative humidity
15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature
-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity
15% to 90% @ 149°F (65°C), noncondensing

Altitude up to 10,000 ft (3 km)
Acoustic Power: 37.9 dB, Pressure: 31.8 dB

Frequency 50/60 Hz

Maximum heat dissipation
170 BTU/hr (179.35 kJ/hr), (switch only: 170 BTU/hr; combined switch +
max. PoE devices: 1505 BTU/hr)

Voltage 100 - 127 / 200 - 240 VAC, rated
Current 5.2/2.6 A
Maximum power rating 441 W
Idle power 37.5 W
PoE power 382 W
