Creative Sound Blaster Audigi FX 5.1 PCI-E x1 600 AMP 106dB 24bit 192kHz SB1570

Creative Sound Blaster Audigy FX 5.1 PCI-e x1 600 AMP 106dB 24bit 192kHz SB1570

Condition Refurbished

Compeve SKU 248300100813

Specifications

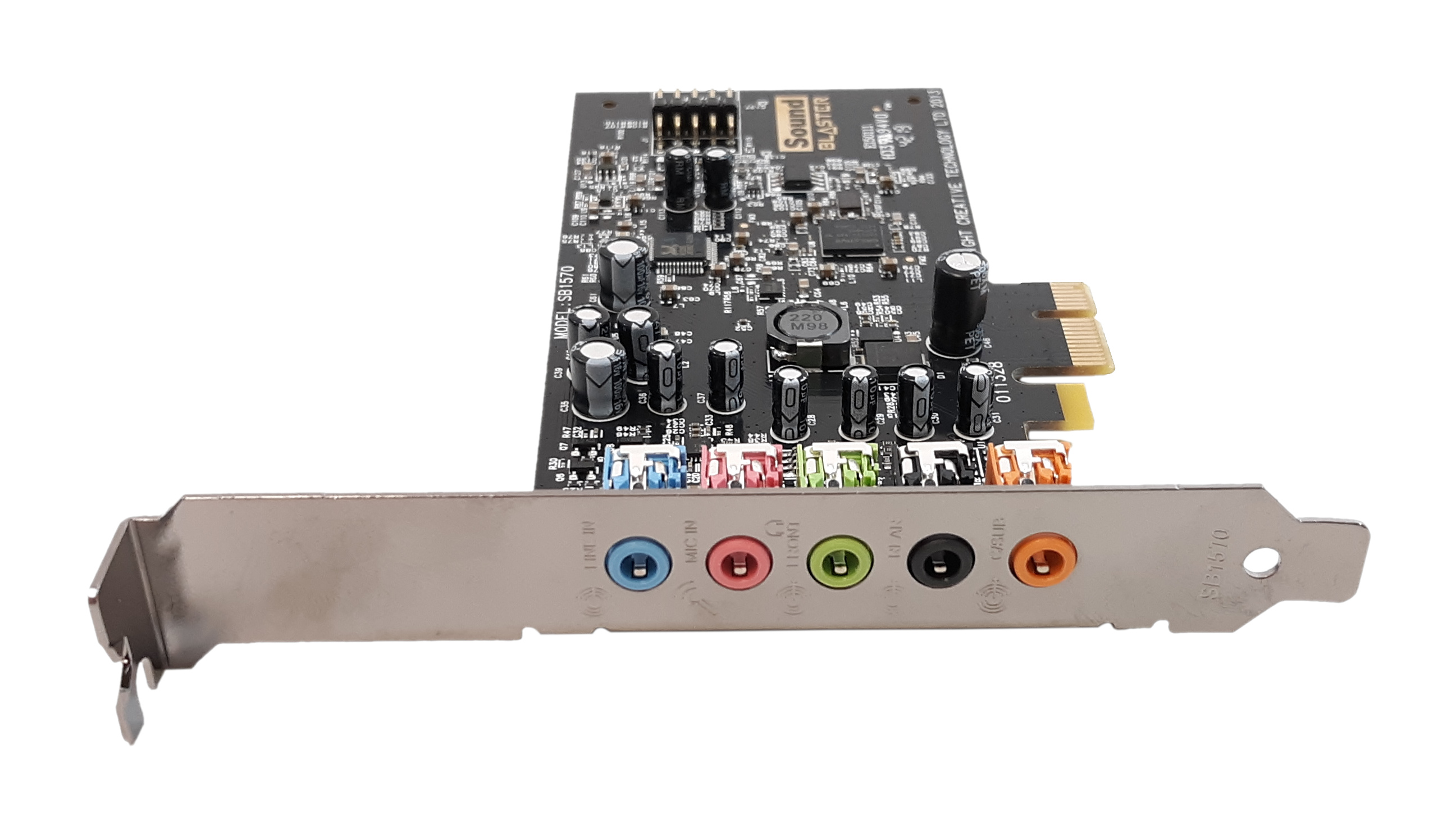

Rear Panel Connectivity

-Line-in : 1 x 1/8-inch mini jack

-Microphone-in : 1 x 1/8-inch mini jack

-Headphone / Front-out : 1 x 1/8-inch mini jack (4 pole jack)

-Rear-out : 1 x 1/8-inch mini jack

-Centre / Subwoofer : 1 x 1/8-inch mini jack

PCI Bus Mastering

-PCI Express Specification Version 1.1 compliant

-Bus mastering reduces latency and speeds up system performance

Audio Performance

-16-bit to 24-bit recording sampling rates: 44.1, 48 and 96 kHz

-16-bit to 24-bit playback sampling rates: 44.1, 48, 96 and 192 kHz

Note

At 5.1 speaker configuration, the maximum supported playback sampling rate is 96 kHz

Speaker Support

-Stereo / 2.1 Speakers

-5.1Speakers

Headphones

-Stereo Headphones

-Compatible with Apple Earphones (4 pole jack)

Bus Connection

-PCI Express 1x , 4x , 8x , 16x

Audio Inputs

-One3.5mm(1/8-inch) Line In jack for Analog Line In

-One3.5mm(1/8-inch) Microphone In jack

Audio Outputs

-One3.5mm(1/8-inch) Headphone jack, shared with Line Out (Front Left / Right) jack

-Three 3.5mm (1/8-inch) Line Out jacks for six channel analog audio output:

Front Left, Front Right, Front Center, Subwoofer, Rear Left and Rear Right channels
