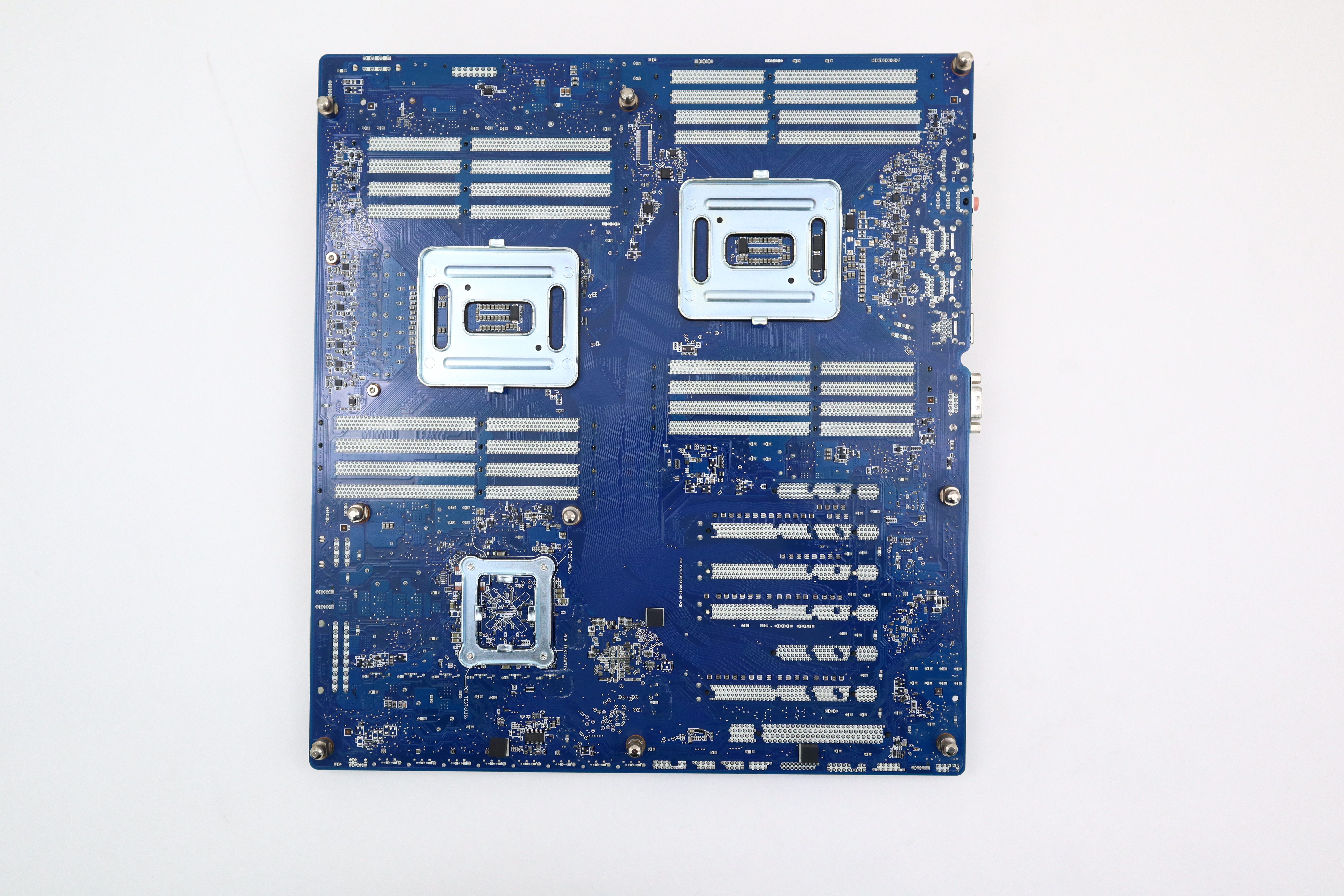

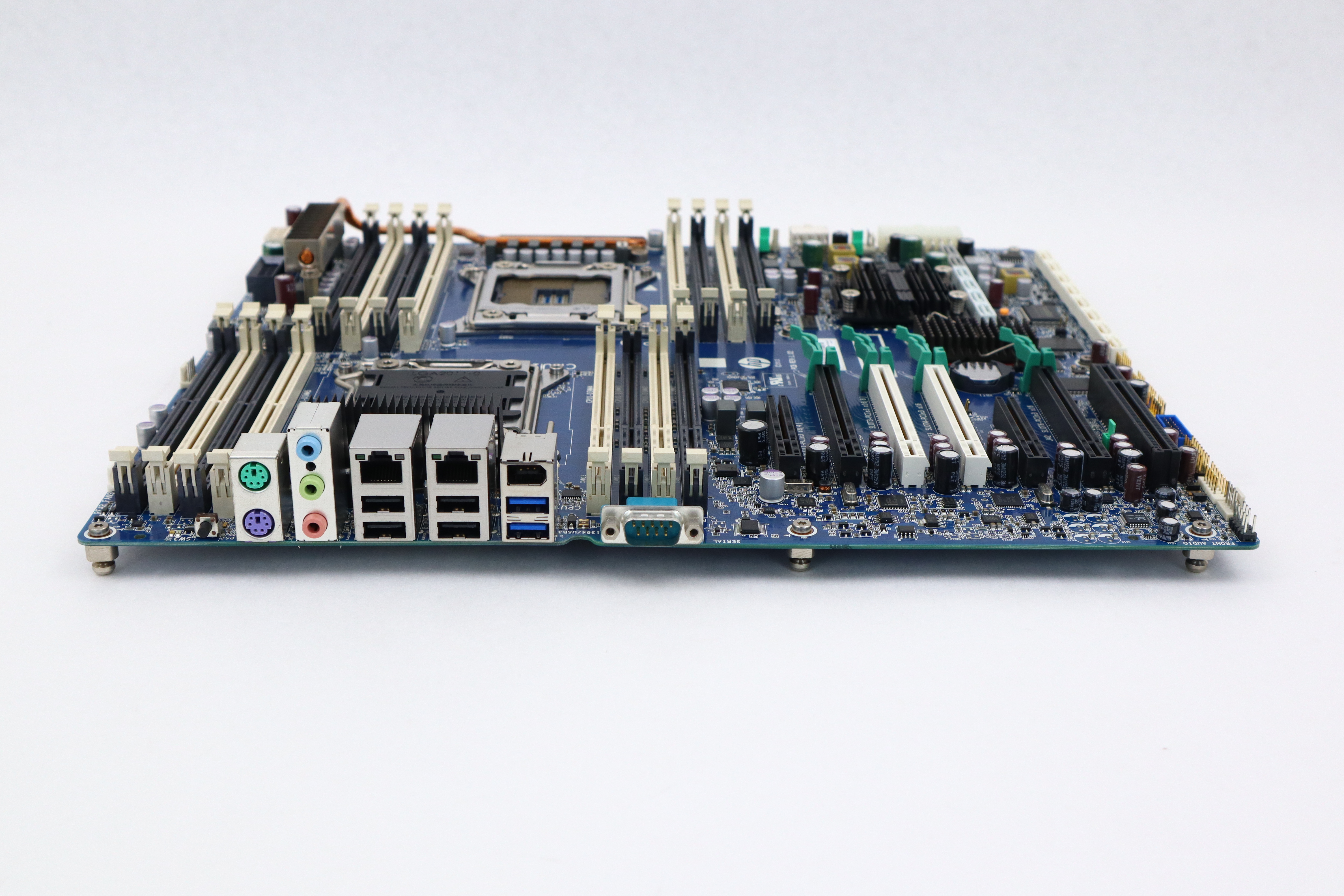

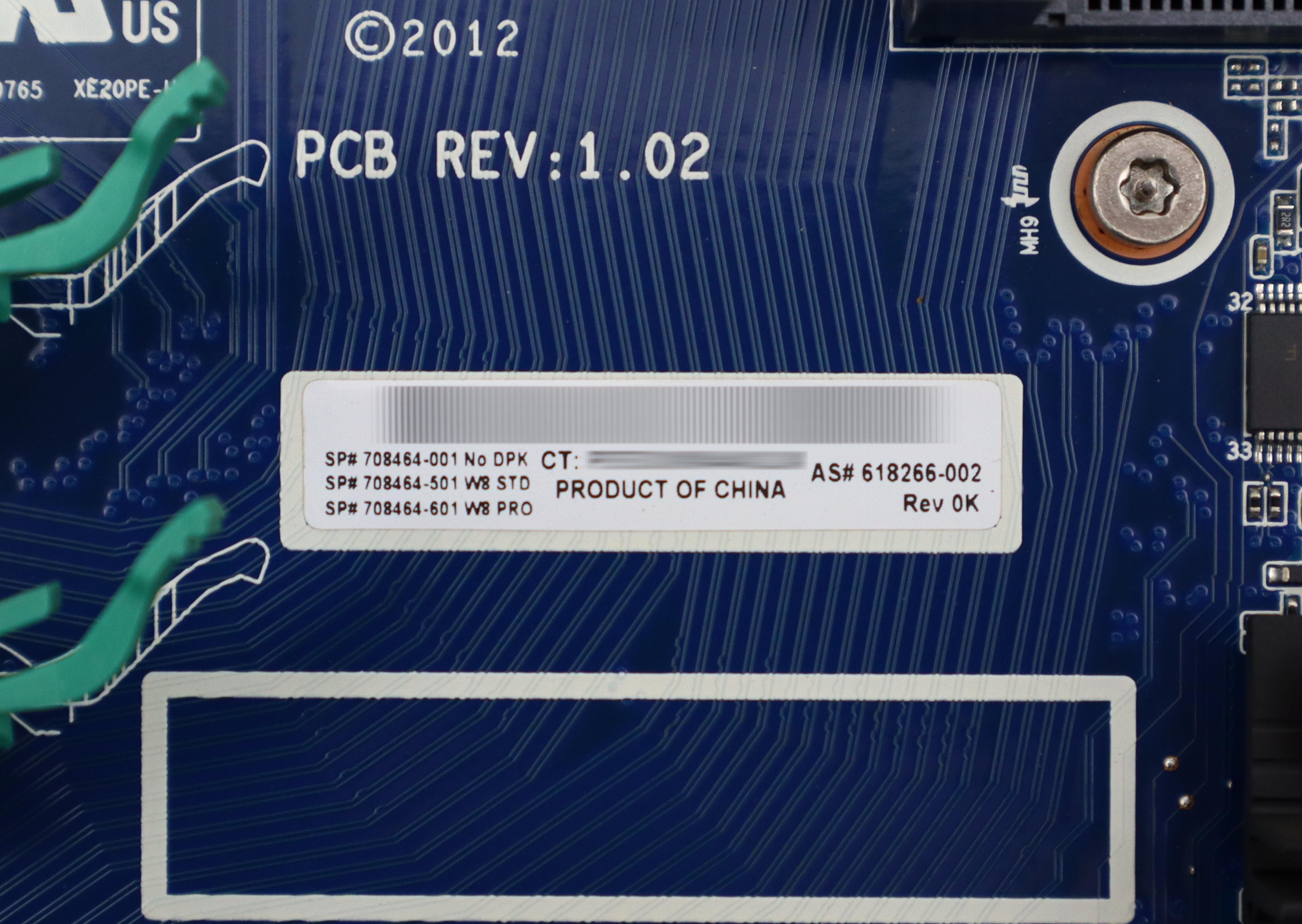

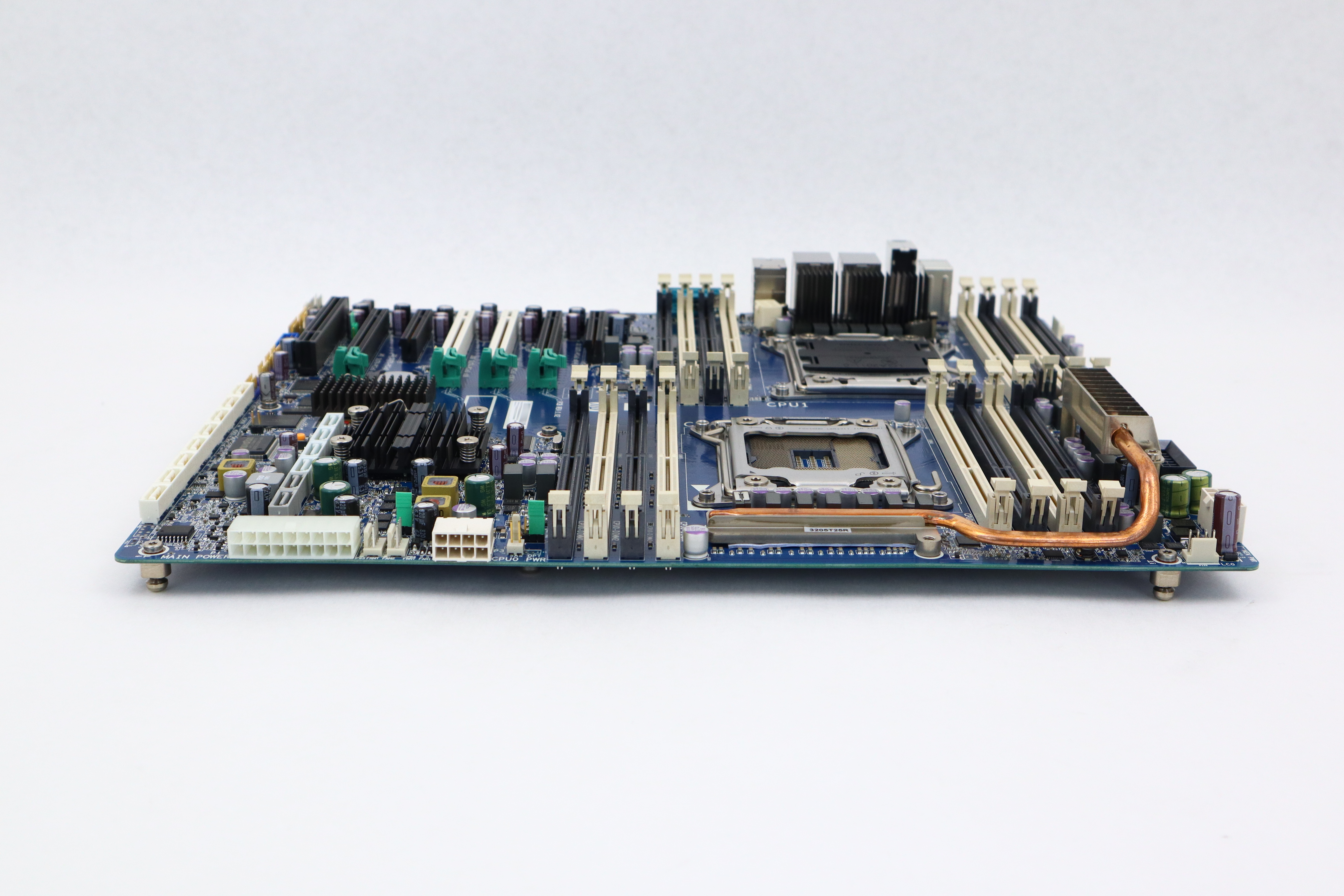

HP Z820 Workstation Motherboard 618266-002 708464-001 708464-501 708464-601

HP Z820 Workstation Motherboard 618266-002 708464-001 708464-501 708464-601

Condition Refurbished

Compeve SKU 101000110913

Specifications

Supported CPU's Intel Xeon E5 processors

Socket  LGA2011

Chipset Intel C602 Chipset

Memory  16 DIMM slots, up to 512 GB, 8-channel ECC DDR3, up to 1600 MHz,

4 channels per CPU

Drive Controllers Integrated 2-channel SATA 6 Gb/s controller, RAID 0, 1 capable; Integrated 4

channel SATA 3 Gb/s controller, RAID 0, 1, 5, 10 capable; Integrated 8-channel

SAS 6 Gb/s controller, RAID 0, 1, 10 capable;

Expansion Slots 2 PCI Express Gen3 x16; 1 PCI Express Gen3 x16 (Available only with 2nd

CPU); 1 PCI Express Gen3 x16 mechanical/x8 electrical; 1 PCI Express Gen3

x8 mechanical/x4 electrical; 1 PCI Express Gen2 x8 mechanical/x4 electrical; 1

Legacy PCI

Network Dual integrated Intel GbE LAN
