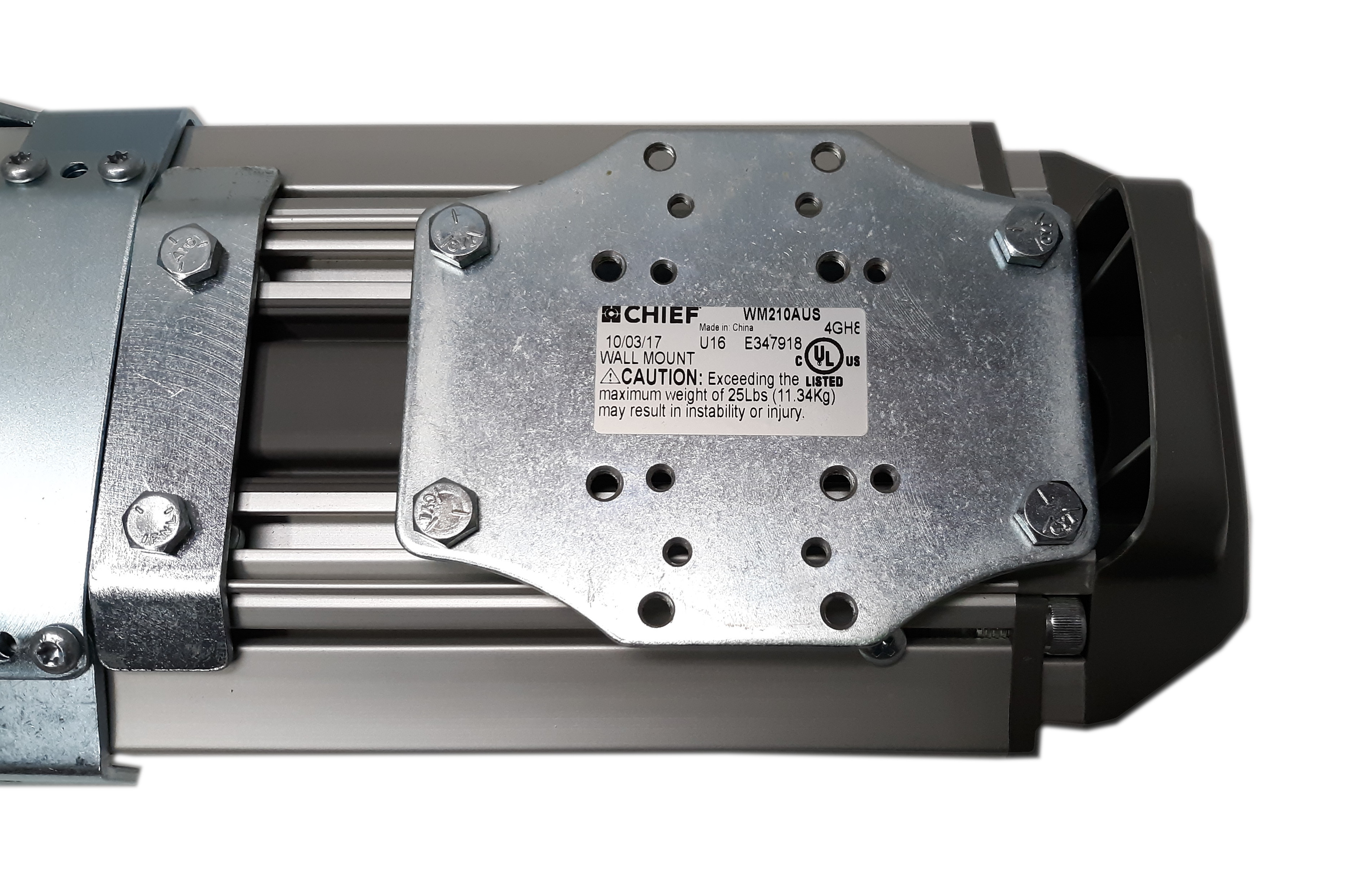

Chief Mounting Kit RSMAUS Mini RPA Elite Mount for Projectors RSMA000S WM210AUS
Condition: The unit was inspected. Is in very good condition, full working order.
Compeve SKU: 242200100313

Specification:

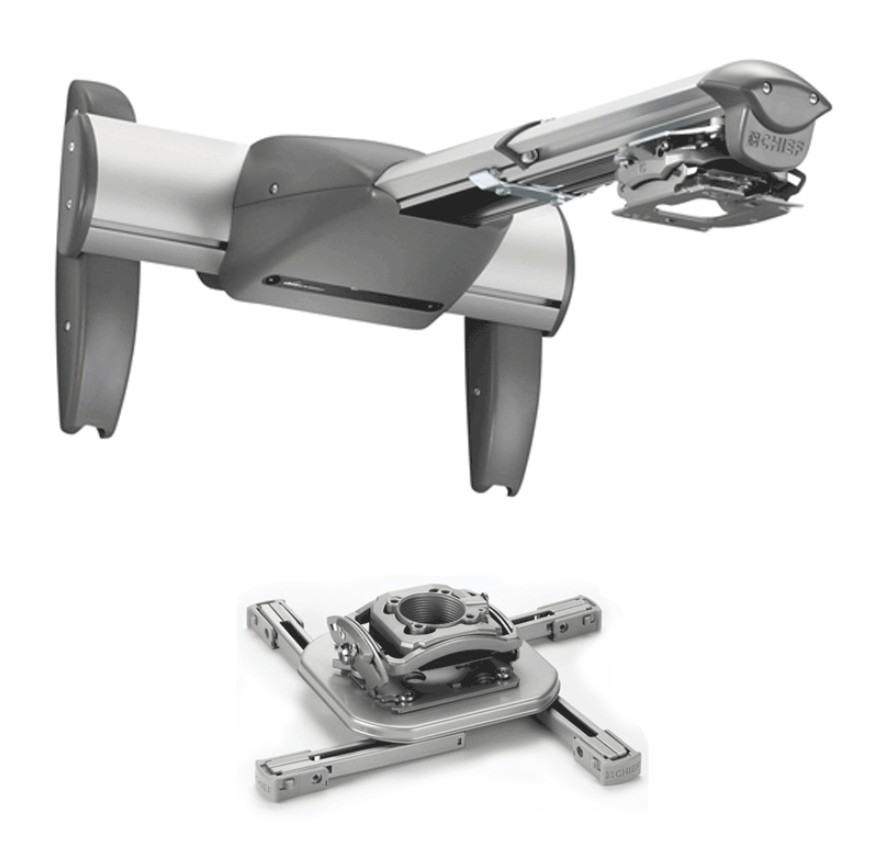

The Chief WM210AUS Short Throw Projector Arm/ Mini Elite Mount Kit is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.

The WM210AUS also includes an integrated cable management system that allows you to conceal unsightly cables for a sleek look. Trust the security of this mount, as it boasts all-points locking hardware as well as four projector mount keyed locks. Chief uses RPA Elite mounts, which account for the roll, pitch, and yaw for stability. Roll describes the rotation around the front-to-back axis of the mount, pitch is the side-to-side axis, and yaw is the rotation around the vertical axis of the mount. These factors ensure precise image alignment.

Construction - Steel
Finish - Silver
Adjustments - Roll: +/-20°
Pitch: +/-3°
Yaw: 360°
Full extension: 20.08" (58.6 cm)
Projector distance from wall: 12.75-19.5" (28.5-45.7 cm)
Lateral shift: 10" (25.4 cm)
Dimensions - Extended Arm: 23.08 x 5.41 x 6.38" (58.6 x 13.7 x 16.2 cm)
Wall plate: Wall plate: 19.63 x 11.53 x ~5" (49.8 x 29.3 x ~12.7 cm)
Load Capacity - 50 lbs (22.7 kg)

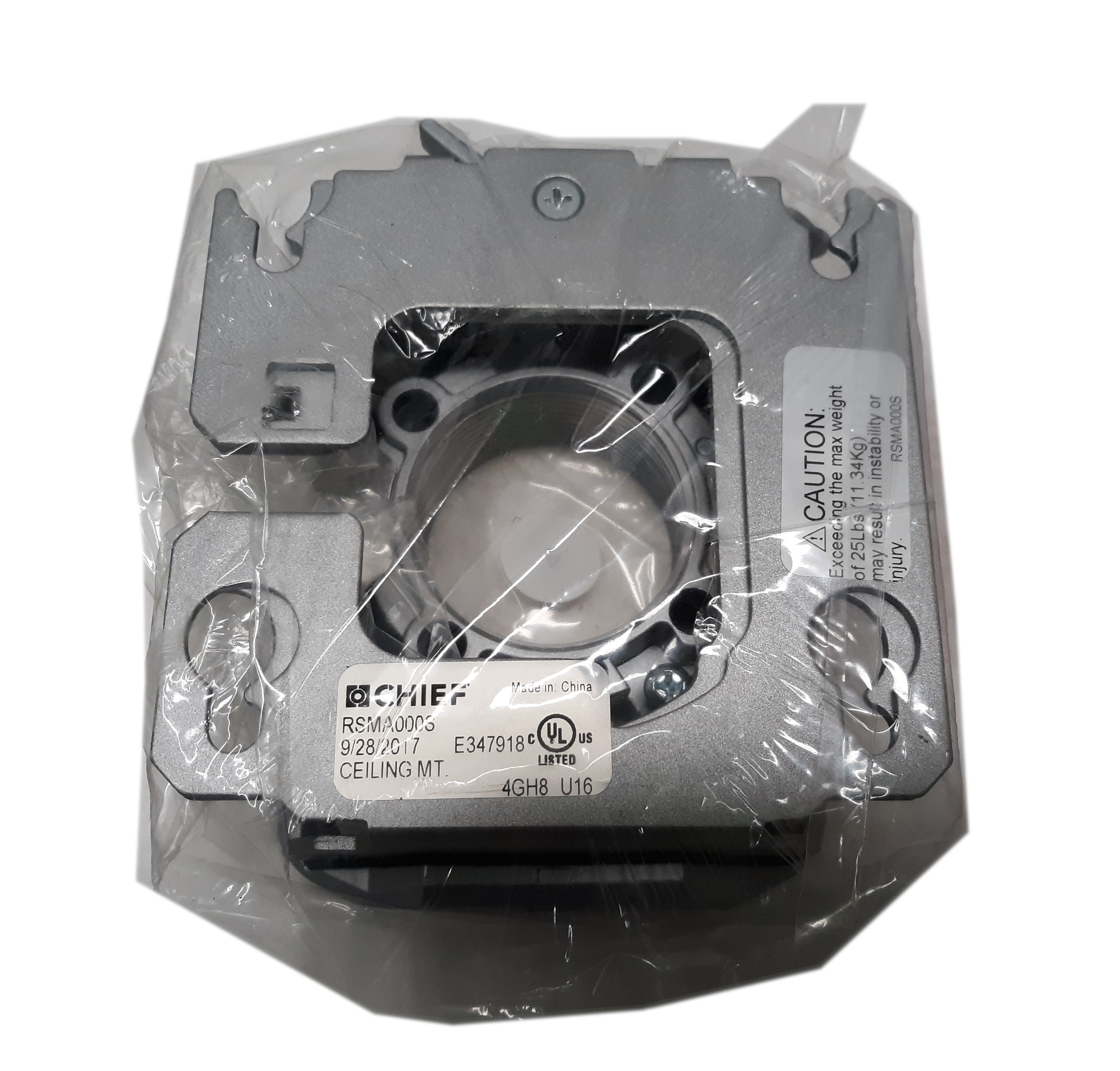

Mount:
Adjustments - Roll: +/-3°
Pitch: +/-15°
Yaw: 360°
Construction - Steel
Dimensions - 1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm)
Load Capacity - 25 lbs (11.3 kg)
Color - Silver

Compeve DTP#: mrk001
