Noctua NF-F12 iPPC-24V-3000 PWM IP67 Heavy Duty 4-Pin 3000 RPM 24V

Noctua NF-F12 iPPC-24V-3000 PWM IP67 Heavy Duty 4-Pin 3000 RPM 24V

Condition: Open Box

Compeve SKU: 517400100130

Specification:

Size 120x120x25 mm

Mounting hole spacing 105x105 mm

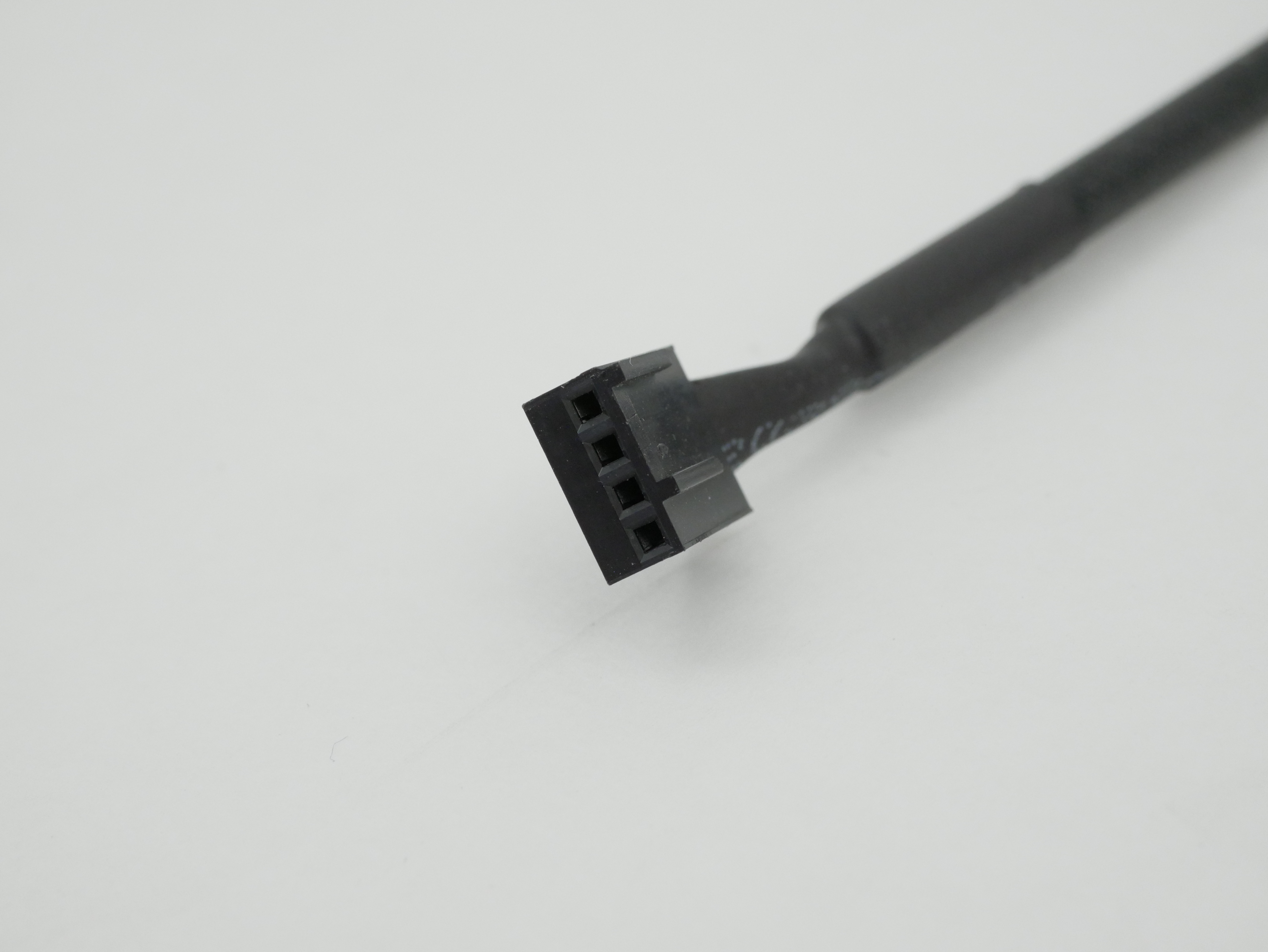

Connector & pin-configuration 4-pin PWM

Cable length 40cm

Bearing SSO2

Blade geometry Heptaperf™

Frame technology FocusedFlow™

Material Fibre-glass reinforced polyamide

Ingress protection IP67

Motor type Three-phase

Rotational speed (+/- 10%) 3000 RPM

Min. rotational speed @ 20% PWM (+/-20%) 750 RPM

Rotational speed @ 12V (+/- 10%) 1600 RPM

Airflow 186,7 m³/h

Acoustical noise 43,5 dB(A)

Static pressure 7,63 mm H₂O

Input power (typical) 3,33 W

Input power (max.) 4,32 W

Input current (typical) 0,14 A

Max. input current 0,18 A

Operating voltage 24 V

Voltage PWM signal 5 V

MTTF > 150.000 h
