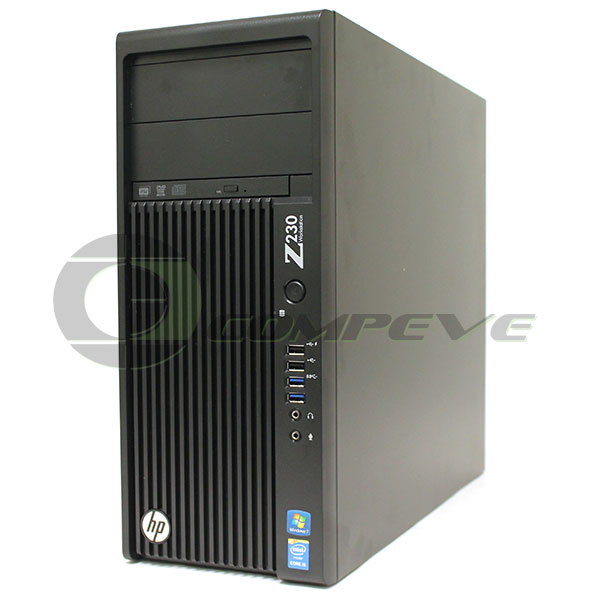

| HP Z230 Workstation Mini-tower i5 4570 3.60GHz 8GB RAM 500GB HDD W7P G3F48US#ABA |
| |
|
| Manufacturer |
HP |
| Product Line |
Z Series |
| Model number |
Z230 Mini-tower |
| Part number |
G3F48US#ABA |
| SKU |
WSHP035 #1092-01 |
| Factory warranty |
HP HW Maintenance Onsite Support till Jan 14, 2018 |
| |
|
| Description |
| Affordable performance and flexibility, re-define. Create a totally immersive work environment for those who demand reliability and performance on a budget. Designed for heavy 24x7x365 workloads, the HP Z230 delivers next-generation processor and graphics technologies in a redesigned, compact yet impressively expandable tower. |
| |
|
| Specifications |
| Processor |
|
| |
|
| Clock Speed: |
3.6 GHz |
| Installed Qty: |
1 |
| Manufacturer: |
Intel |
| Max Supported Qty: |
1 |
| Number of Cores: |
Quad-Core |
| Processor Number: |
i5-4570 |
| Type: |
Core i5 |
| Upgradability: |
Upgradable |
| |
|
| Optical Storage |
| |
|
| Drive Type: |
DVD SuperMulti |
| Interface Type: |
Serial ATA |
| Type: |
DVD±RW (±R DL) / DVD-RAM |
| |
|
| Storage Hard Drive |
| |
|
| Capacity: |
500GB |
| Interface Type: |
Serial ATA-600 |
| |
|
| RAM |
| |
|
| Configuration Features: |
2 x 4 GB |
| Data Integrity Check: |
Non-ECC |
| Empty Slots: |
2 |
| Features: |
Dual channel memory architecture , Unbuffered |
| Form Factor: |
DIMM 240-pin |
| Installed Size: |
8 GB |
| Max Supported Size: |
32 GB |
| Memory Specification Compliance: |
PC3-12800 |
| Memory Speed: |
1600 MHz |
| Slots Qty: |
4 |
| Technology: |
DDR3 SDRAM |
| |
|
| Audio Output |
| |
|
| Compliant Standards: |
High Definition Audio |
| Form Factor: |
Integrated |
| |
|
| Bay Provided |
| |
|
| Form Factor: |
5.25" x 1/2H |
| Free Qty: |
2 |
| Total Qty: |
2 |
| Form Factor: |
5.25" Slim Line |
| Free Qty: |
0 |
| Total Qty: |
1 |
| Form Factor: |
3.5" |
| Free Qty: |
1 |
| Form Factor: |
2.5" |
| |
|
| Cabinet |
| |
|
| Chassis Built-in Devices: |
Speaker |
| |
|
| Dimensions & Weight |
| |
|
| Depth: |
17.4 in |
| Height: |
15.7 in |
| Weight: |
19.4 lbs |
| Width: |
6.7 in |
| |
|
| Display |
| |
|
| Type: |
None. |
| |
|
| Environmental Parameters |
| |
|
| Humidity Range Operating: |
8 - 85% (non-condensing) |
| Max Operating Temperature: |
95 °F |
| Min Operating Temperature: |
41 °F |
| |
|
| Header |
| |
|
| Brand: |
HP |
| Compatibility: |
PC |
| Country Kits: |
United States |
| Localization: |
English |
| Manufacturer: |
Hewlett Packard Smart Buy |
| Model: |
Z230 |
| Packaged Quantity: |
1 |
| Product Line: |
HP Workstation |
| |
|
| Input Device |
| |
|
| Type: |
Keyboard , Mouse |
| |
|
| Interface Provided |
| |
|
| Location: |
2 front, 2 rear |
| Qty: |
4 |
| Type: |
USB 3.0 |
| Location: |
2 front, 4 rear |
| Qty: |
6 |
| Type: |
USB 2.0 |
| Location: |
1 in front |
| Qty: |
1 |
| Type: |
Headphones |
| Location: |
1 front, 1 rear |
| Qty: |
2 |
| Type: |
Microphone |
| Type: |
DVI-I |
| Type: |
DisplayPort |
| Type: |
PS/2 keyboard |
| Type: |
PS/2 mouse |
| Type: |
LAN (Gigabit Ethernet) |
| Type: |
Audio line-in |
| Type: |
Audio line-out |
| |
|
| Mainboard |
| |
|
| Processor Socket: |
LGA1150 Socket |
| |
|
| Miscellaneous |
| |
|
| Color: |
Jack black |
| Color Category: |
Black |
| Compliant Standards: |
ACPI 4.0 , RoHS , WEEE |
| Features: |
Audio ports control , Network port control , Power-on password , Setup Password , USB port control |
| Manufacturer Selling Program: |
HP Smart Buy |
| Theft/Intrusion Protection: |
Security lock slot (cable lock sold separately) |
| |
|
| Networking |
| |
|
| Data Link Protocol: |
Ethernet , Fast Ethernet , Gigabit Ethernet |
| Features: |
PXE support , Wake on LAN (WoL) |
| Form Factor: |
Integrated |
| |
|
| Optical Storage (2nd) |
| |
|
| Drive Type: |
No optical drive |
| Type: |
None |
| |
|
| OS Provided |
| |
|
| Edition: |
|
| Family: |
|
| Preinstalled OS: |
|
| Type: |
|
| |
|
| Power Device |
| |
|
| 80 PLUS Certification: |
80 PLUS Gold |
| Efficiency: |
92% |
| Frequency Required: |
50/60 Hz |
| Nominal Voltage: |
AC 120/230 V |
| Power Factor Correction: |
Yes (active) |
| Power Provided: |
400 Watt |
| Type: |
Power supply |
| |
|
| Slot Provided |
| |
|
| Free Qty: |
0 |
| Total Qty: |
1 |
| Free Qty: |
2 |
| Total Qty: |
4 |
| Free Qty: |
1 |
| |
|
| Storage Controller |
| |
|
| Channel Qty: |
6 |
| Form Factor: |
Integrated |
| Installed Qty: |
1 |
| Interface Type: |
Serial ATA-600 |
| RAID Level: |
RAID 0 , RAID 1 |
| Type: |
Serial ATA |
| |
|
| Storage Removable |
| |
|
| Type: |
None |
| |
|
| System |
| |
|
| Designation: |
Corporate business , Small business |
| Embedded Security: |
Trusted Platform Module (TPM 1.2) Security Chip |
| Hard Drive Capacity: |
500GB |
| Platform Technology: |
Intel vPro Technology |
| Type: |
Workstation |
| |
|
| Video Output |
| |
|
| Form Factor: |
Integrated |
| Graphics Processor Series: |
Intel HD Graphics |
| Max Monitors Supported: |
3 |
| Video Interfaces: |
DisplayPort , DVI |
| |
|
| Cache Memory |
| |
|
| Installed Size: |
8 MB |
| Per Processor Size: |
8 MB |
| |
|
| Chassis |
| |
|
| Form Factor: |
Mini tower |
| Manufacturer Form Factor: |
Mini tower |
| |
|
| Environmental Standards |
| |
|
| ENERGY STAR Qualified: |
Yes |
| |
|
| Expansion Bays |
| |
|
| Form Factor (metric): |
13.3 cm x 1/2H |
| Type: |
External |
| Form Factor (metric): |
13.3 cm Slim Line |
| Form Factor (metric): |
8.9 cm |
| Type: |
Internal |
| Form Factor (metric): |
6.4 cm |
| |
|
| Expansion Slots |
| |
|
| Type: |
CPU |
| Type: |
DIMM 240-pin |
| Size: |
Full-length, full-height |
| Type: |
PCIe 3.0 x16 |
| Size: |
Full-height |
| Slot Comments: |
X1 mode |
| Type: |
PCIe 2.0 x4 |
| Slot Comments: |
X4 mode |
| Type: |
PCIe 2.0 x16 |
| Type: |
PCIe 2.0 x1 |
| Type: |
PCI |
| |
|
| Hard Drive |
| |
|
| Installed Qty: |
1 |
| Interface Class: |
Serial ATA |
| Spindle Speed: |
7200 rpm |
| Type: |
HDD |
| |
|
| Keyboard |
| |
|
| Interface: |
USB |
| |
|
| Mouse |
| |
|
| Interface: |
USB |
| Technology: |
Optical |
| |
|
| RAM Supported |
| |
|
| Data Integrity Check: |
ECC |
| Max Size: |
32 GB |
| Registered or Buffered: |
Unbuffered |
| Data Integrity Check: |
Non-ECC |
| |
|
| Video Memory |
| |
|
| Memory Allocation Technology: |
Shared video memory (UMA) |
|
Package |
| Condition |
New, open box |
| Contents |
Workstation, power cord.
|
| |
|
|
