JBL Professional Control Contractor Ceiling LoudSpeaker 30W 2-way CONTROL24CT

JBL Professional Control Contractor Ceiling LoudSpeaker 30W 2-way CONTROL24CT

Price :
$130.00  $69.99
Save: 46% off
Add to Cart:
  • SKU: 299000100313
  • Model: JBL-CONTROL24CT
  • Shipping Weight: 8lbs
  • 1 Units in Stock
  • Manufactured by: Panasonic

DESCRIPTION

JBL Professional Control Contractor Ceiling LoudSpeaker 30W 2-way CONTROL24CT

Compeve_corp

image image image image image image

Compeve_corp

Condition Refurbished



Compeve SKU 299000100313



Specifications

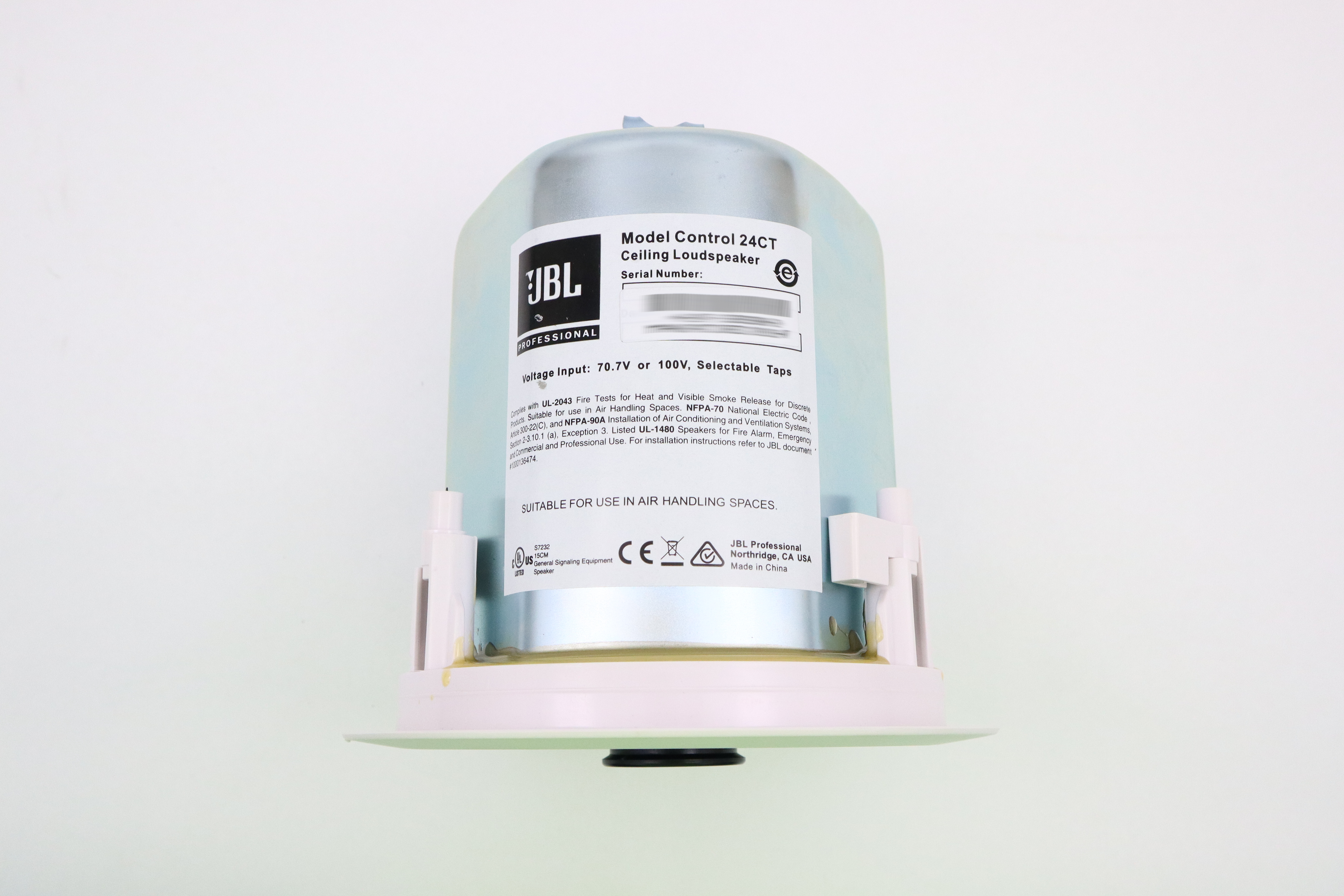

The Control 24CT is a compact in-ceiling speakers, providing full, high

quality sound for background music and music-plus-paging systems.



Frequency Range 80 Hz - 20 kHz

Power Rating  See transformer taps

Transformer Taps  70V: 30W, 15W, 7.5W (& 3.7W @ 70V)

Coverage Angle  130° conical

Directivity Factor (Q)  2.4 dB averaged 500 Hz to 4 kHz

Directivity Index (DI)  3.8 dB averaged 500 Hz to 4 kHz

Maximum SPL (1m)  102 dB (top 70V/100V tap)

Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)

Sensitivity 86 dB (100 Hz - 10 kHz)

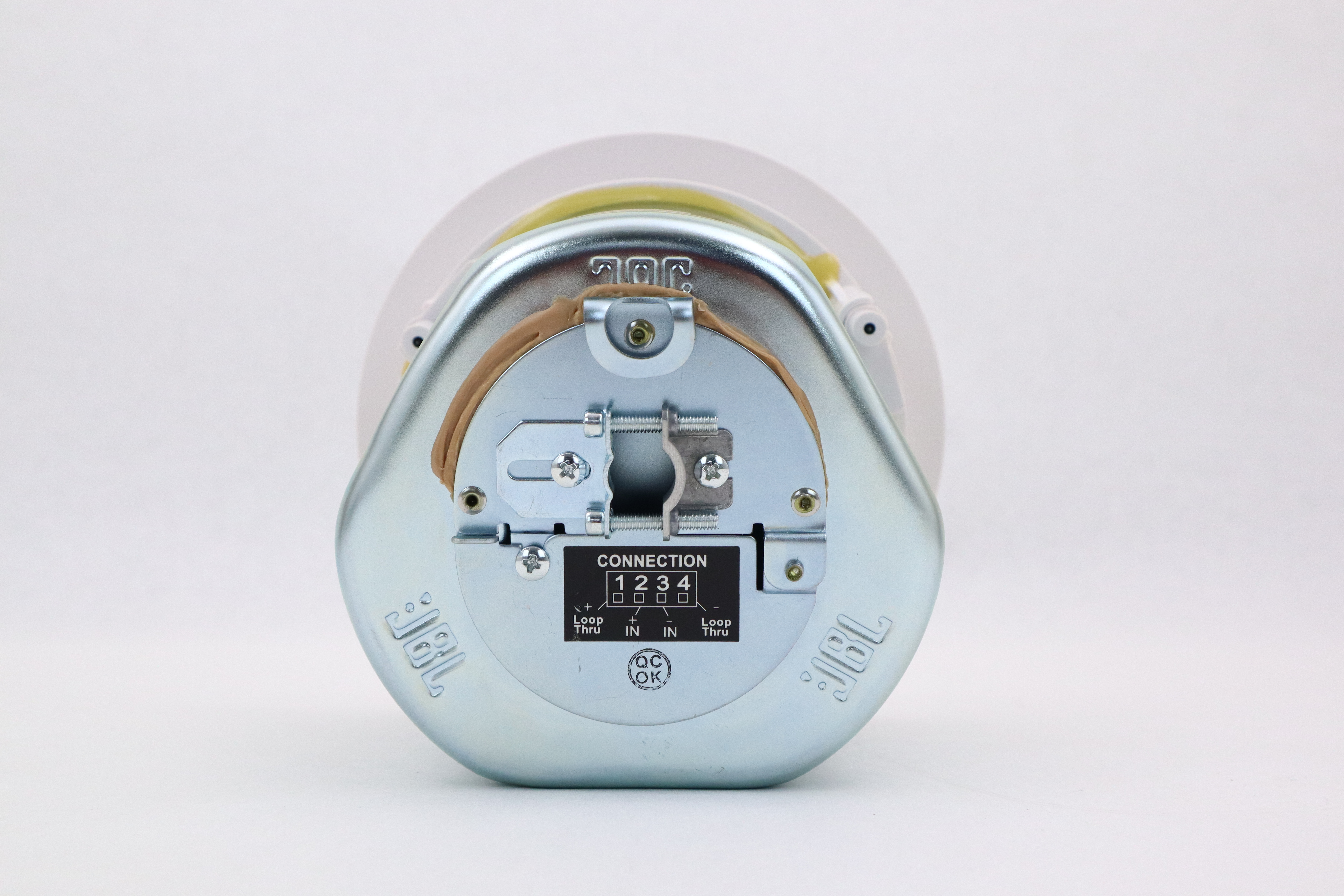

Input Connectors  Removable 4-pin locking connector with screw-down terminals.

Color White

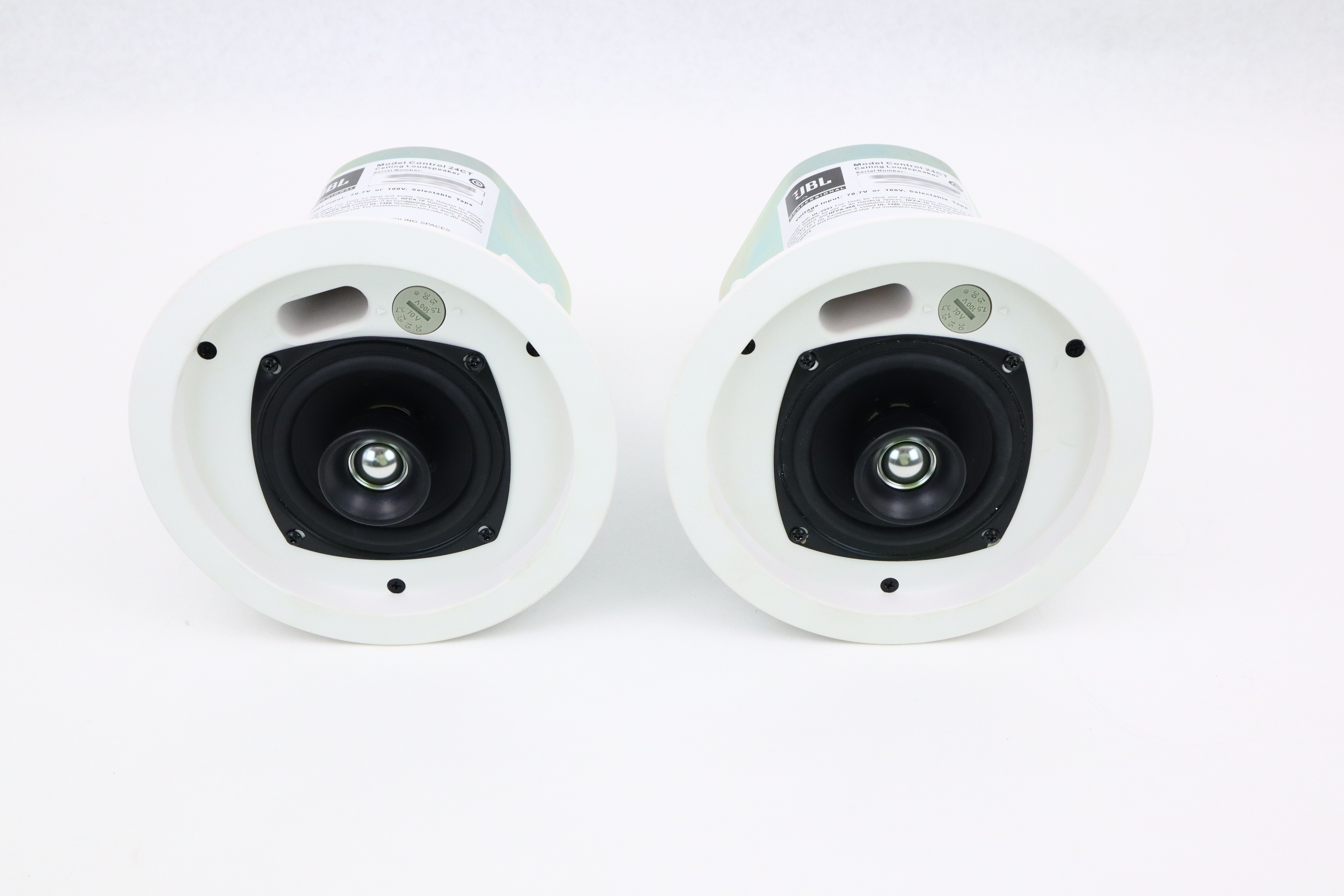

Drivers

LF Driver: 100 mm (4.0 in)

HF Driver: 19 mm (0.75 in)

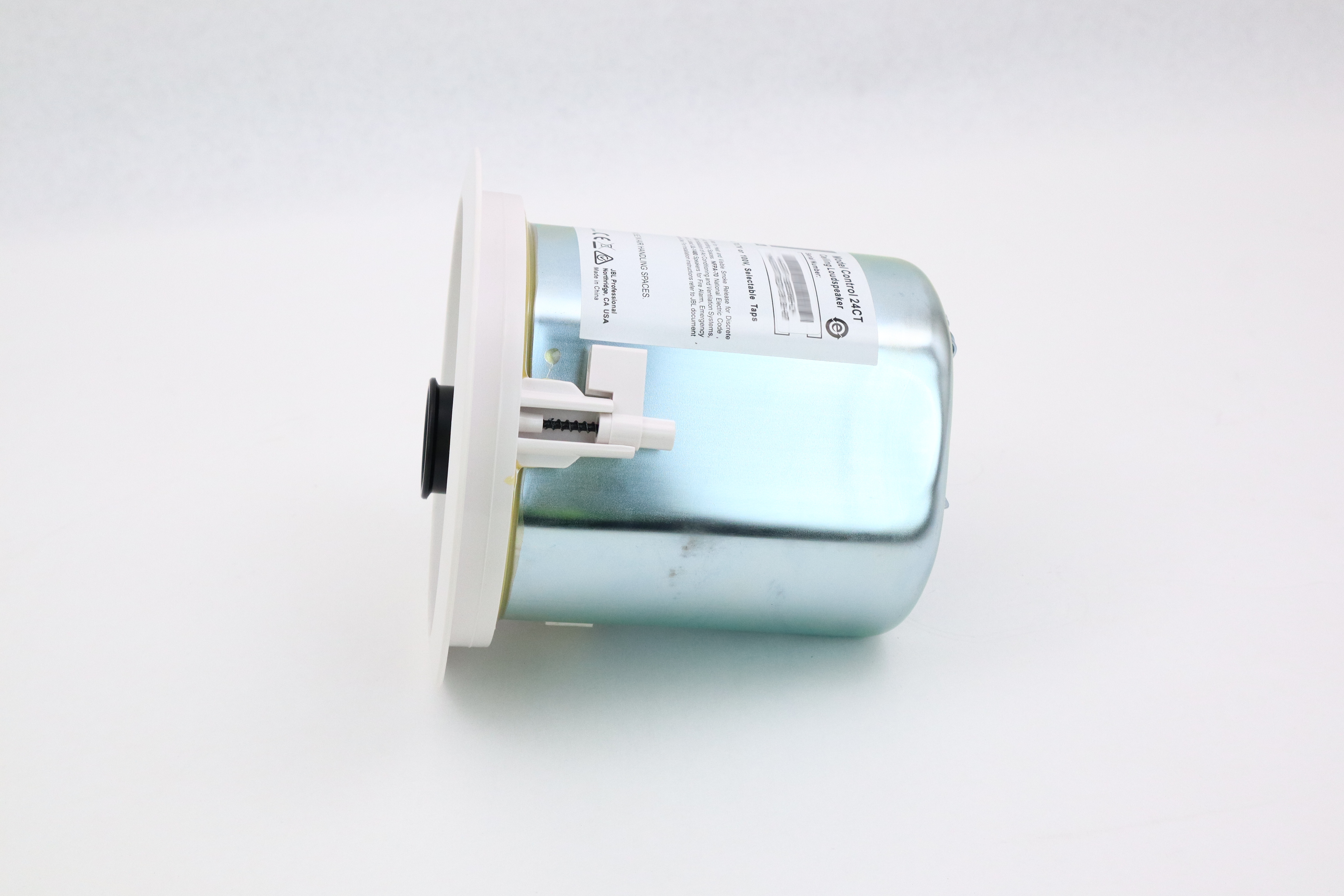

Backcan formed steel (included "blind-mount")

Baffle/Rim  Medium impact polystyrene, fire rated UL94V-0



Ceiling Cutout Size 168 mm (6.6 in) diameter



Safety Agency Suitable for use in air handling spaces per UL1480,

UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker.

Transformer UL registered per UL1876. In accordance with IEC60849/N60849.




Compeve DTP#: mrk001

Condition:

New
