Specification:
• Stability and strength of an enclosure in a open mounting system
• Provides easy access to equipment and cabling

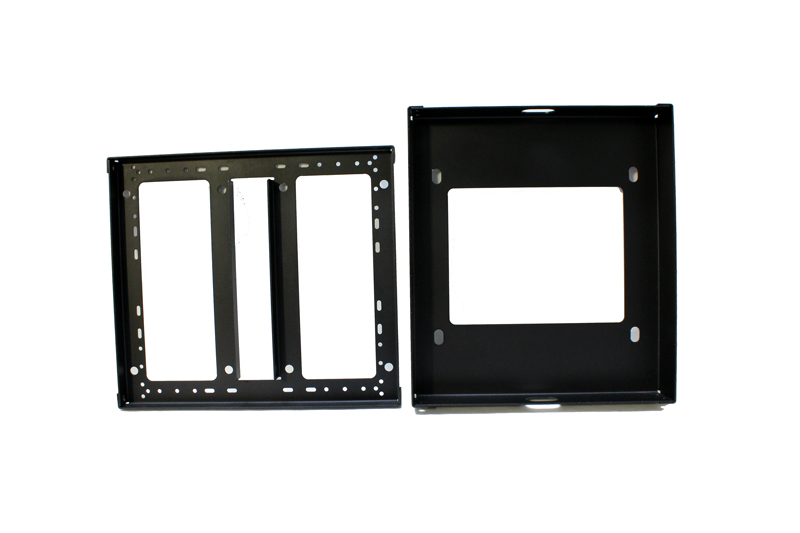

• Quick assembly with one-piece top and bottom pan sets
• Easy to bay together to create multi-frame configurations
• Use with any CPI Cabling Section to manage cables
• Equipment mounting locations are marked and numbered on the mounting channel
• Threaded mounting holes speed installation of rack-mount equipment and shelving
• Support large equipment on heavy-duty four-post fixed and slidingshelves
Description
Four-post frame with threaded mounting holes used to support 19” wide
rack-mount communications equipment and shelves
For indoor use only, in environmentally controlled areas; may not be used
outdoors, in industrial or harsh environments, or in plenum spaces
Equipment Support

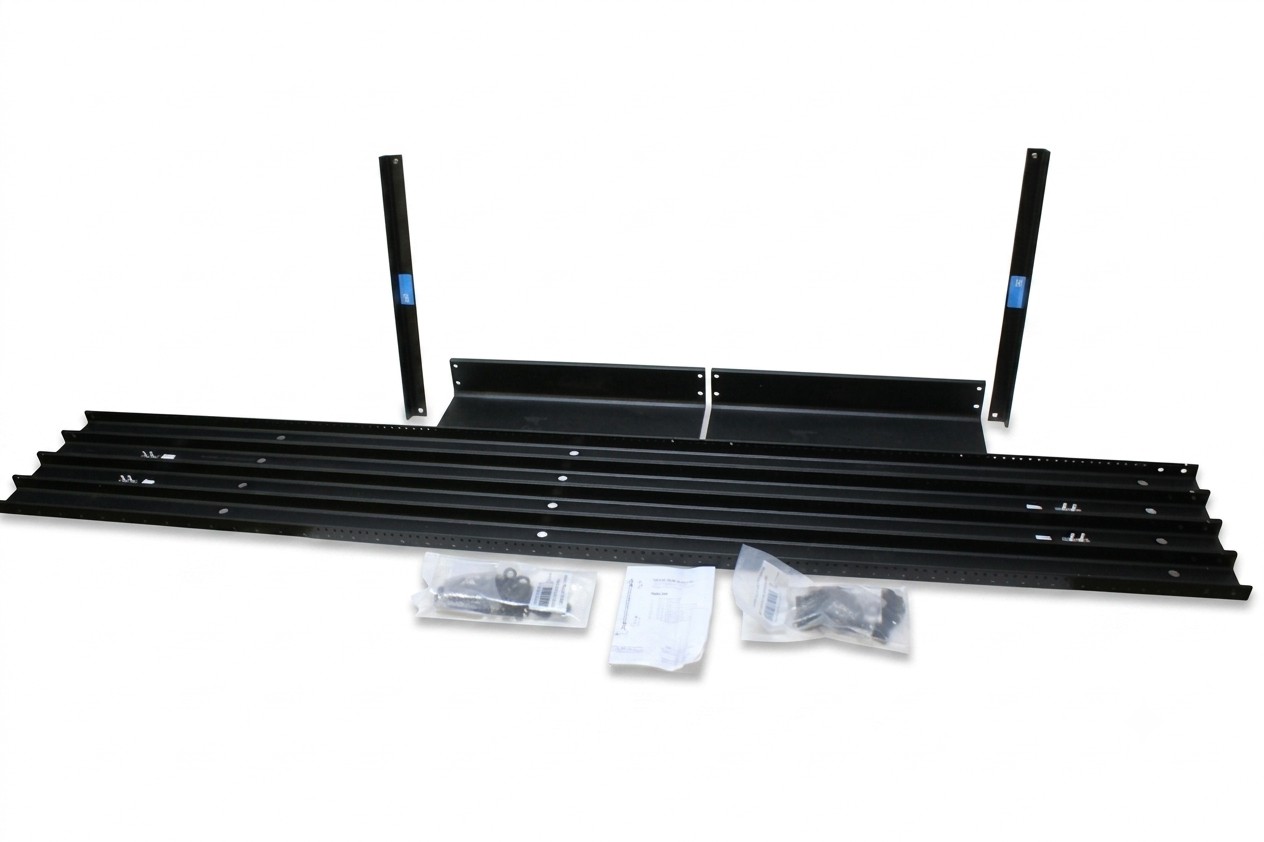

Front and rear pairs of 3” deep C-shaped equipment mounting channels
Fixed in place, 29” apart front-to-rear 19” wide, EIA-310-D compliant hole pattern
Universal Hole Pattern, 5/8”-5/8”-1/2” alternating vertical mounting hole spacing
Threaded #12-24 equipment mounting holes; Includes 100 mounting screws
RMU spaces are marked and numbered on the channels
Load Capacity 2000 lb (907.2 kg)of equipment
Certifications
EIA-310-D compliant
UL Listed; File E227626; Category NWIN (US), NWIN7 (Canada) - Information
Technology and Communications Equipment Cabinet, Enclosure and Rack
OSHPD Preapproval of Manufacturer's Certification (OPM-0260)
Material
Aluminum extrusion Aluminum sheet
Clear grained aluminum or Epoxy-polyester hybrid powder coat paint available in black, gray or glacier white

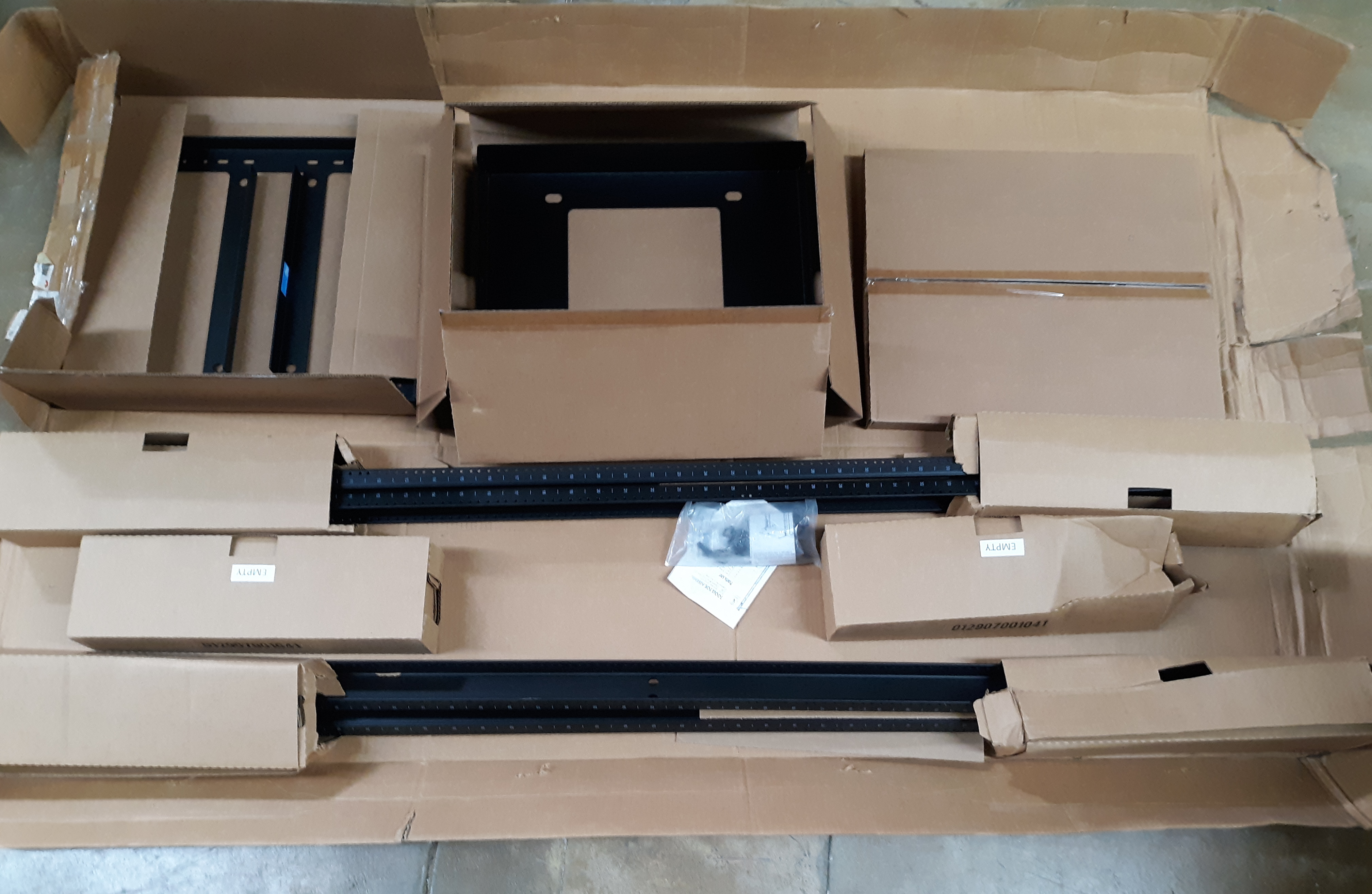

Bolted assembly, Ships unassembled
