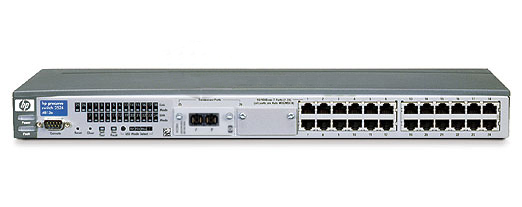

HP ProCurve Switch 2524 |
(J4813A) |
|
Ports |
24 RJ-45 10/100 ports
(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T)
2 transceiver slots (100-FX SC
Transceiver (J4853A) installed)
1 RS-232C DB-9 console port |
|
Dimensions: |
8.0 x 17.4 x 1.8 in.
(20.32 x 44.2 x 4.57 cm)
1U height |
|
Weight: |
6.0 lb (2.72 kg)
fully loaded
|
|
Memory and processor |
|
|
Processor type and speed: |
ARM7TDMI, 62.5 MHz |
|
Packet buffer size: |
6 MB |
|
RAM/ROM capacity: |
26 MB |
|
Flash capacity: |
2 MB |
|
Performance |
|
|
Latency: |
< 10 µs (LIFO) |
|
Throughput: |
6.6 million pps (64-byte packets) |
|
Switching capacity: |
9.6 Gbps |
|
Routing table size: |
4096 entries |
|
Environment |
|
|
Operating temperature: |
32 °F to 131 °F (0 °C to 55 °C) |
|
Operating relative humidity: |
15 % to 95 % at 104 °F (40 °C), noncondensing |
|
Non-operating/storage temperature: |
-40 °F to 158 °F (-40 °C to 70 °C) |
|
Non-operating/storage relative humidty: |
90 % to 90 % at 149 °F (65 °C), noncondensing |
|
Shock and vibration: |
HP759, HP760 (similar to EN 60068, IEC 68) |
|
Electrical characteristics |
|
|
Maximum heat dissipation: |
123 BTU/hr |
|
Voltage: |
100-127 VAC/200-240 VAC |
|
Current: |
2.4 A /1.2 A |
|
Power: |
36 W |
|
Frequency: |
50/60 Hz |
|
Mounting |
Mounts in a standard 19" rack (hardware not included) |
|
Safety |
cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL
1950 3rd edition |
|
Condition: |
Refurbished |
|
Warranty: |
|
